Spezifikationen
KategorieMountain
UnterkategorieEnduro
Jahr2023

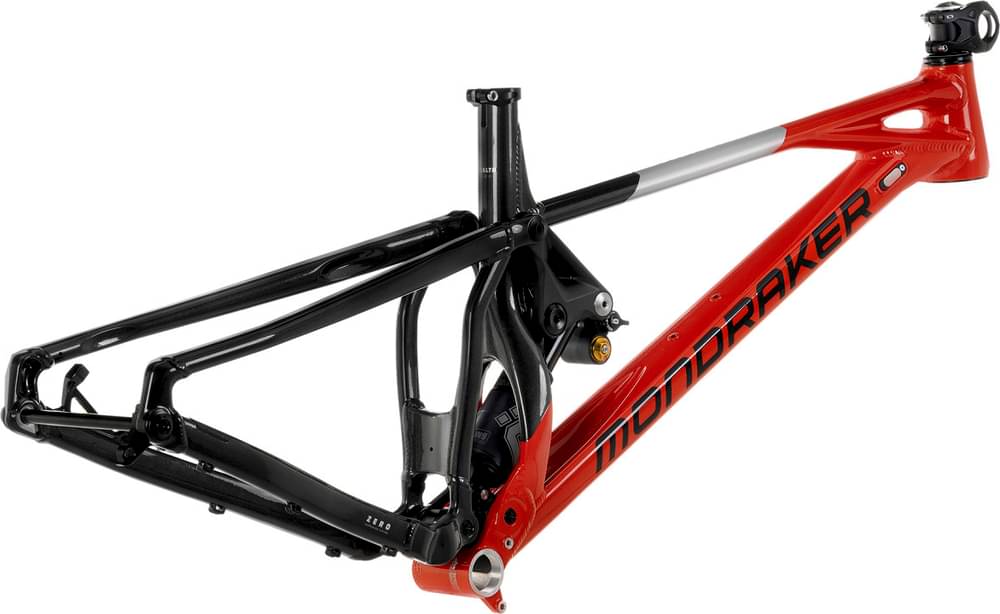

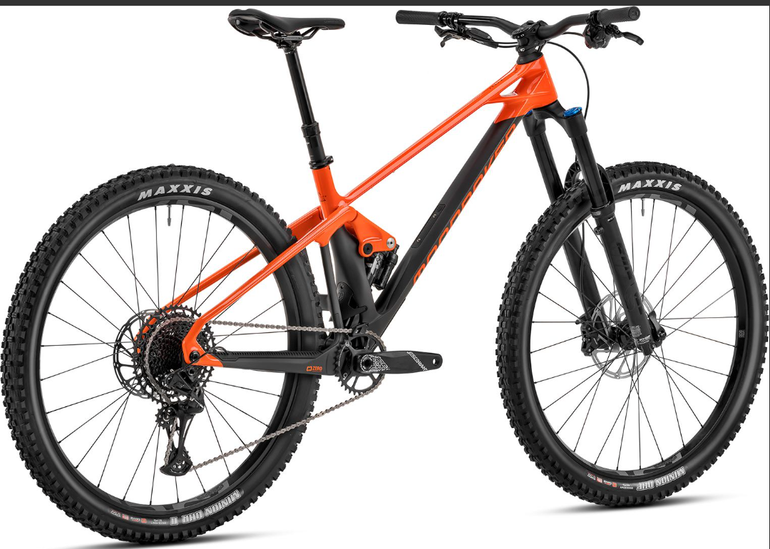

RahmenFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspe...
RahmenmaterialAluminum
GabelFox 36 29 Float GRIP EVOL Rhythm, 160mm, tapered steerer tube,...
Gewicht15.6 kg
FederungFull
DämpferFox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebou...
FederwegNULL
Größen
XXXXXXXX
Komponenten
Schaltgruppe
SX Eagle
Antrieb
1 X 12
Schaltwerk
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Kette
SRAM SX Eagle, 12s, Powerlock
Kurbel
SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm, Rings: 32T, steel, X-Sync 2
Tretlager
SRAM DUB BSA, sealed bearings, 73mm
Bremsentyp
Hydraulic Disc
Bremsen
SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Bremshebel
SRAM G2 R, tool-free reach adjust
Lenker
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Vorbau
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Griffe
ONOFF Twin, 1lock-on, 135mm
Sattel
SDG BEL-AIR 3.0, LPU foam, steel rails
Sattelstütze
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Laufräder & Reifen
Laufradgröße
29
Laufradmaterial
Aluminum
Felgen
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Speichen
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Reifen
Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Reifenbreite
2.5"
